Metering cabinet system A 1100/1115 ZW

Recycleble full plastic ● protective insulation ● sturdy stiff design



Transformer metering

Outdoor distributors

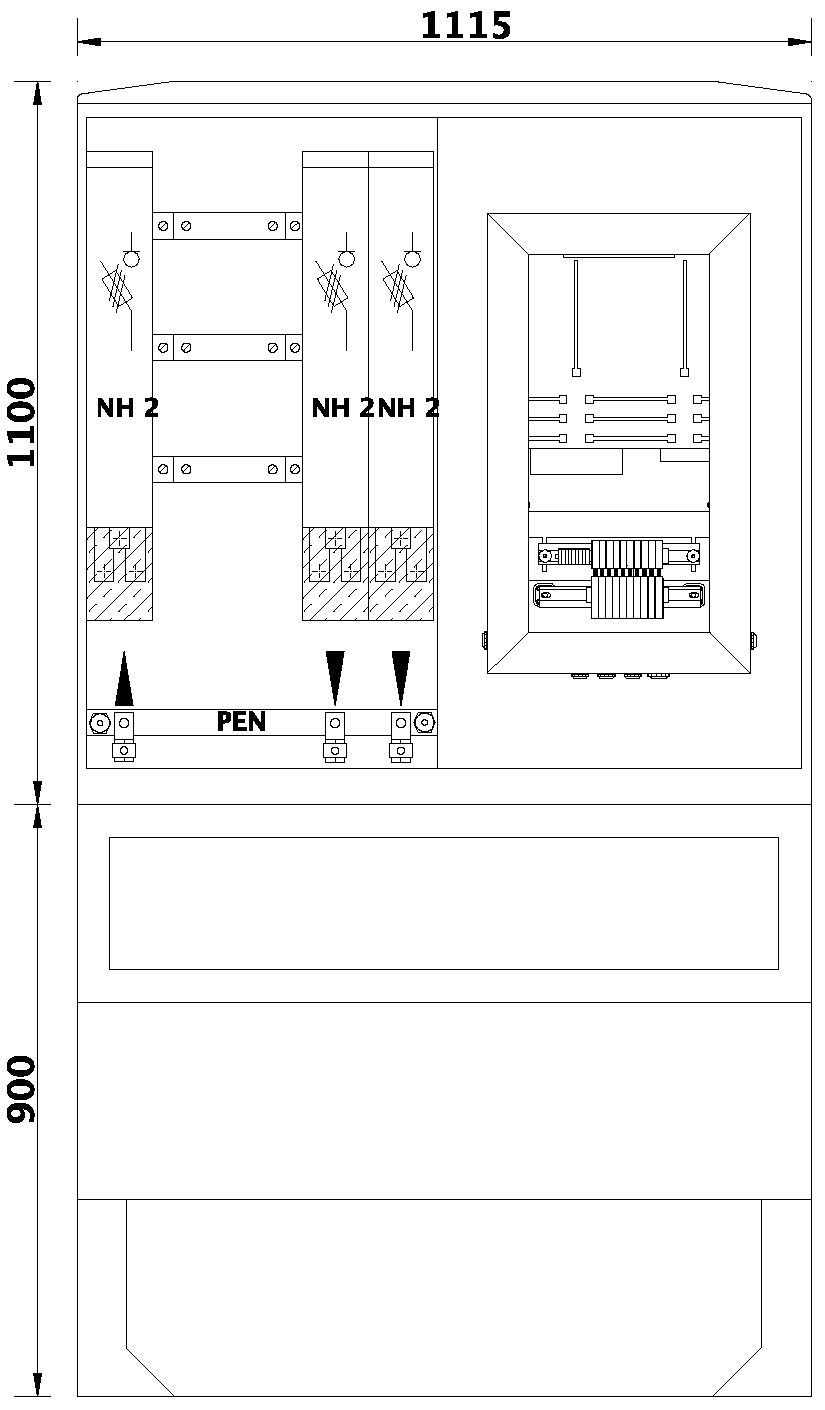

Dimensions: 1100 x 1115 x 350 mm



Base H = 900 mm



Weight: approx. 150 kg



Lock: Swivelling lever handle, prepared for profile half cylinder



Transformer:

• Cable guide at bottom: via cable clamp rail

• 1 NH fuse load disconnector block Size 2/400A at input

• Primary guide rails for the network operator’s transformers

• 2 NH fuse load disconnector block Size 2/400A at output

• Wiring set for transformer meter

• Transparent, sealable cover



Meter:

Metering cabinet E 700/400 D1



Dimensions: 700 x 400 x 225 mm



• Bottom test terminal with high plexi dividers

• Cable entry point: bottom 3x Pg 16, 1x Pg 21

  right and left 1x Pg 16 each



Door with full-view safety glass



Lock: Square-key lock with sealable indicating disk



Weight: approx. 6 kg



Meter board E 700/400 D1-HZ5-2-300



Dimensions: 520 x 300 x 25 mm



• 2 meter positions

• Top test terminal

• Additional terminal block

• Completely wired ready to connect

• 3 fuses (2A) soldered into the wiring



Weight: approx. 2.5 kg



Cover cap AK 700/400-HZ-300



• Transparent, sealable



Weight: approx. 0.65 kg
