Metering cabinet system E 700/700 D1 ZW

Recycleble full plastic ● protective insulation ● sturdy stiff design



Low-voltage transformer metering 250A

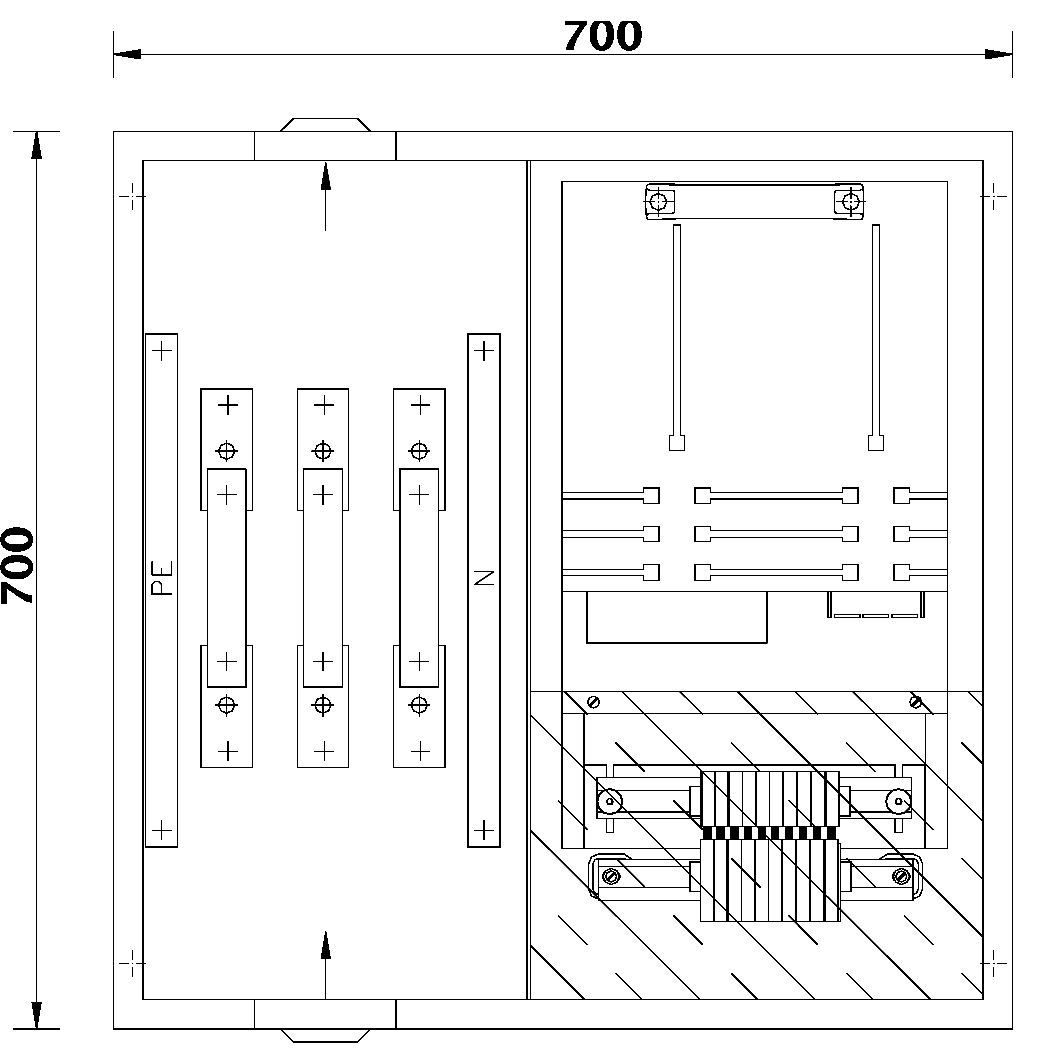

Metering transformer cabinet E 700/700 D1-ZW



Dimensions: 700 x 700 x 225 mm



• Cable connection L1-L3: screw M12

• Cable connection PE+N: screw M10



• Voltage tap

• Primary guide rail for the transformers



• Complete wiring to test terminal

• Bottom test terminal



Wiring in/out: Pg 48 in slide



All covers can be sealed



Lock: Square-key lock with sealable indicating disk



4 screws and plugs to mount cabinet ø9



Weight: approx. 13 kg





Meter board E 700/400 D1-HZ5-2-300



Dimensions: 520 x 300 x 25 mm

• 2 meter positioins

• Top test terminal

• Completely wired ready to connect



Weight: approx. 2,5 kg
