Metering cabinet system E 1250/1050 D1 ZW

Recycleble full plastic ● protective insulation ● sturdy stiff design



Low-voltage transformer metering 250A

Metering cabinet system E 1250/1050 D1 ZW

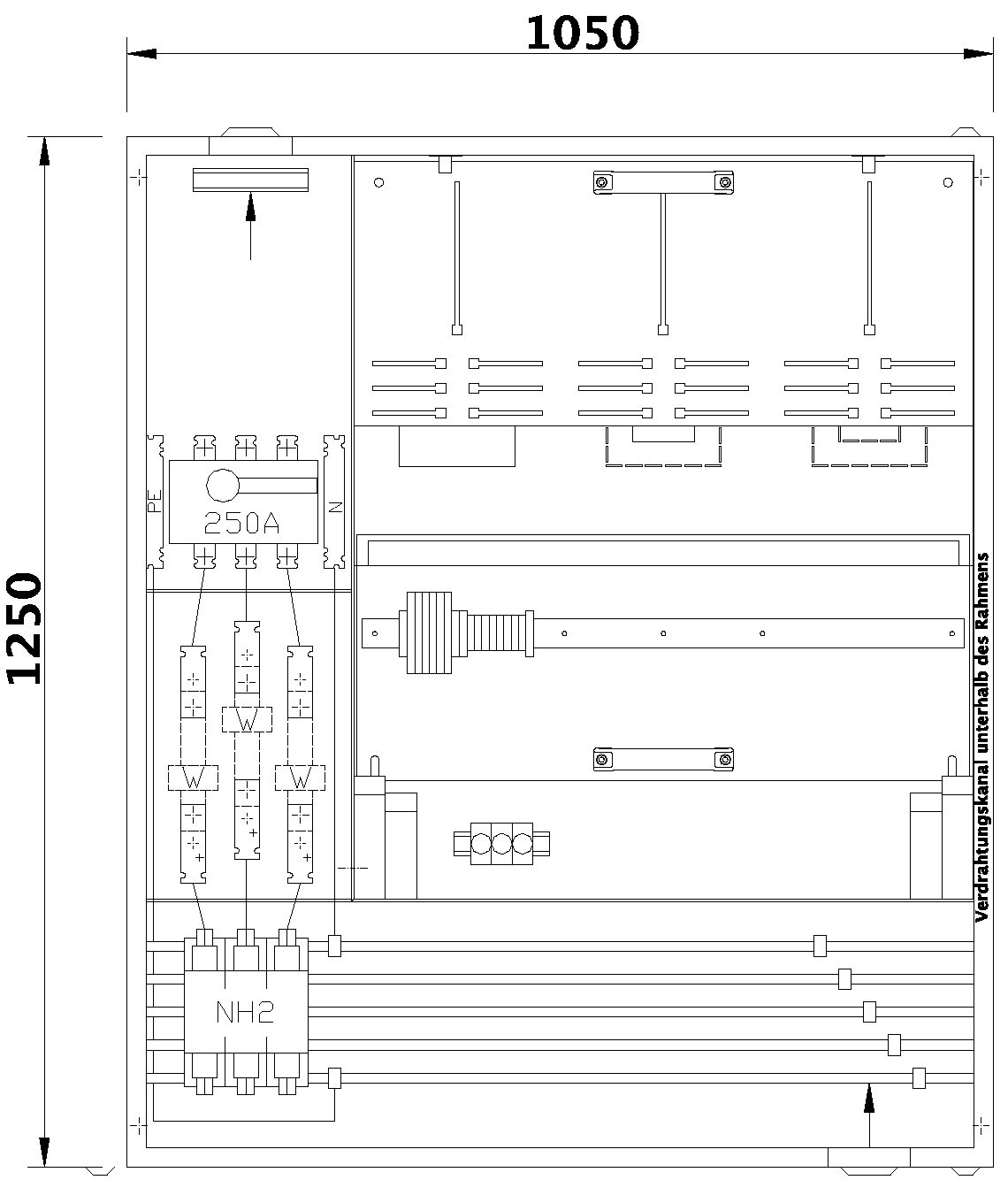

Dimensions: 1250 x 1050 x 225 mm



Wiring in/out: bottom, top 1x Pg16



Door with full-view safety glass



Lock: sealable square-key lock with indicating disk



4 screws and plugs to mount cabinet ø9



• Busbars 355A, 5-pole

• Feeder clamps 120mm2

• Transformer pre-fuse NH-2

• Terminal bars for the primary bars

  of the network operator’s transformers

• Load disconnector 250A, 3-pole

• Voltage tap with

  voltage path fuses D01, 3-pole

• Complete wiring to test terminal

• Sealable cover for the D01 fuse



Weight: approx. 43 kg





Metering cabinet type E 800/800 D1-H5



Dimensions: 750 x 750 x 25 mm



consisting of:

• 3 meter positions

• Completely wired ready to connect

• Test terminal

• Sealable terminal compartment cover



Weight: approx. 11 kg
